Paintera

Type
Author
Hanslovsky Philipp orcid.org/0000-0002-9416-6516
Leite Vanessa
Saalfeld Stephan orcid.org/0000-0002-4106-1761
Pietzsch Tobias
Günther Ulrik orcid.org/0000-0002-1179-8228
Bogovic John orcid.org/0000-0002-4829-9457
Nunez-Iglesias Juan http://orcid.org/0000-0002-7239-5828
Requires
Execution Platform
Implementation Type
Programming Language
Supported image dimension
Interaction Level
License/Openness
License
GNU General Public License v2.0
Description

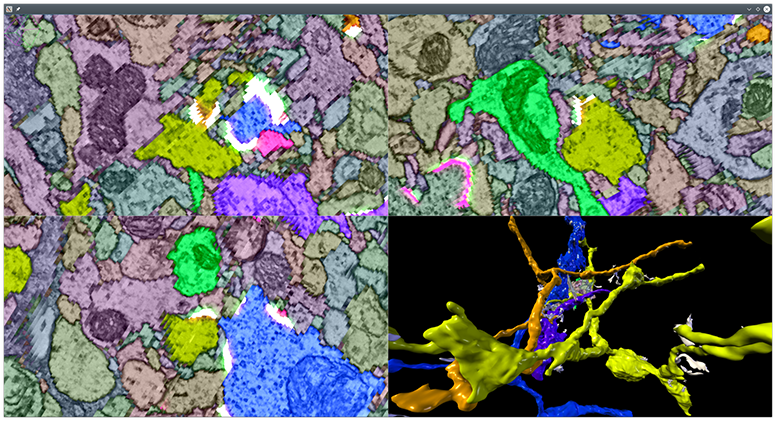

Paintera is a general visualization tool for 3D volumetric data and proof-reading in segmentation/reconstruction with a primary focus on neuron reconstruction from electron micrographs in connectomics. It features/supports:

  •  Views of orthogonal 2D cross-sections of the data at arbitrary angles and zoom levels
  •  Mipmaps for efficient display of arbitrarily large data at arbitrary scale levels
  •  Label data
    •  Painting
    •  Manual agglomeration
    •  3D visualization as polygon meshes
      •  Meshes for each mipmap level
      •  Mesh generation on-the-fly via marching cubes to incorporate painted labels and agglomerations in 3D visualization. Marching Cubes is parallelized over small blocks. Only relevant blocks are considered (huge speed-up for sparse label data).

Paintera is implemented in Java and makes extensive use of the UI framework JavaFX

has biological terms
Additional keywords
Entry Curator
Last modified
12/09/2018 - 18:28
