Directionality

Type
Author
Jean-Yves Tinevez orcid.org/0000-0002-0998-4718
Johannes Schindelin
Jan Eglinger 0000-0001-7234-1435
Mark Hiner
Requires
Supported image dimension
Interaction Level
License/Openness
License
GPLv3
Description

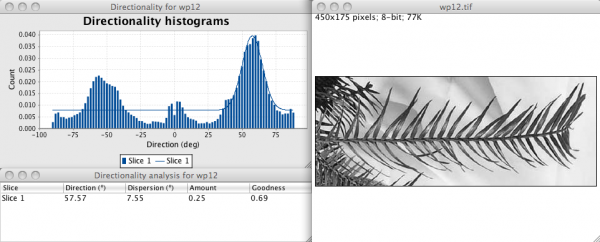

This plugin is used to infer the preferred orientation of structures present in the input image. It computes a histogram indicating the amount of structures in a given direction. Images with completely isotropic content are expected to give a flat histogram, whereas images in which there is a preferred orientation are expected to give a histogram with a peak at that orientation. On top of the histogram, the plugin tries to generate statistics on the highest peak found.

The plugin offers the possibility to generate an orientation map, where the image is colored according to its local directionality, or location orientation.

The plugin is part of Fiji, can be launched through the menu: Analyze > Directionality
